• Country
• United States of America (USA)

• Manufacturer / Brand
• Nova-Tech, Manhattan Beach, CA

• Year
• 1960 ??

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 180532

• Number of Tubes
• 5

• Valves / Tubes
• 12AT7 6AW8A 6AW8A 6U8A 6CL6

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

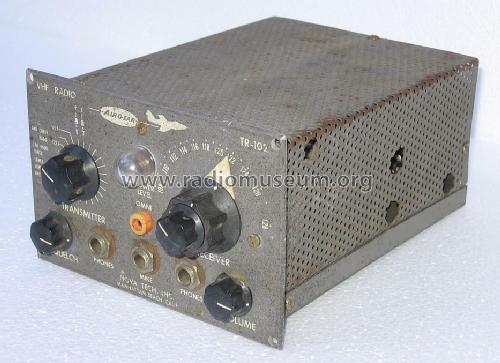

• Model: Air-O-Ear VHF Radio TR-102 - Nova-Tech, Manhattan Beach, CA

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 142 x 92 x 210 mm / 5.6 x 3.6 x 8.3 inch

• Notes
• The receiver covers 108 to 128 MHz. The transmitter has several crystal controlled frequencies within this band. The case is designed for mounting in an aircraft control panel.

• Net weight (2.2 lb = 1 kg)
• 1.432 kg / 3 lb 2.5 oz (3.154 lb)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
