- Country
- Japan
- Manufacturer / Brand
- Novel Dempa Co., Ltd.; Tokyo
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 245985
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- 2SA71 2SA71 2SA104 2SA104 2SA104 2SB175 2SB175 2SB175 2SB175 2SA70 2SB176 2SD178 OA90 OA90 OA90 OA90 OA90
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 4 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 1 W (max.)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

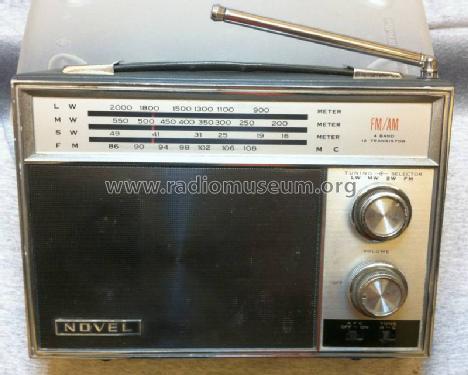

- Model: R-66 - Novel Dempa Co., Ltd.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 250 x 180 x 90 mm / 9.8 x 7.1 x 3.5 inch
- Notes
-
Gehäuse aus Sperrholz mit Kunstleder überzogen. Prägung im Kunstleder. Im Deckel eingeklebt kleines Schaltbild 70 x 50 mm. Schalter für AFC und Tone. Buchse für Ohrhörer.
Made in Japan.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Horst Rempel. See "Data change" for further contributors.
- Other Models
-
Here you find 4 models, 4 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Novel Dempa Co., Ltd.; Tokyo
