• Country
• Denmark

• Manufacturer / Brand
• NRI - Nordisk Radio Industri A/S; Kopenhagen

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 315012

• • Brand: Superphone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UM4 UL41

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, several Short Wave.

• Power type and voltage
• AC/DC-set / 110; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

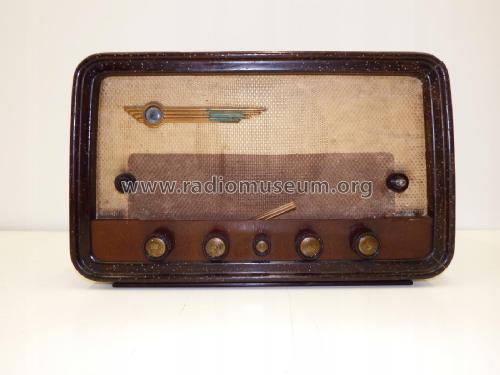

• Model: Superphone Univers 546 - NRI - Nordisk Radio Industri A

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 240 x 310 mm / 19.7 x 9.4 x 12.2 inch

• Notes

• Could be equipped with an additional FM module

• Author
• Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
