• Country
• Belgium

• Manufacturer / Brand
• NSF (Nederlandsche Seintoestellen Fabriek); Leuven

• Year
• 1943 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200712

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY21

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

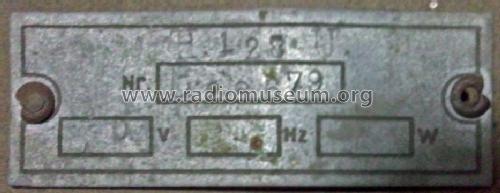

• Model: Aristona H128U - NSF Nederlandsche

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 323 x 205 x 143 mm / 12.7 x 8.1 x 5.6 inch

• Notes

• Loudspeaker 9676

  Dieses Modell basiert auf dem Philips 205U [Holz], genau wie der Siera S108U.

• Net weight (2.2 lb = 1 kg)
• 2.7 kg / 5 lb 15.2 oz (5.947 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in
• Radio Historisch Tijdschrift, Nr. 166, September 2018

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
