• Country
• Netherlands

• Manufacturer / Brand
• NSF Nederlandsche Seintoestellen Fabriek, Hilversum

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94901

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF8 EK2 EF9 EBL1 EM1 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 473 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage

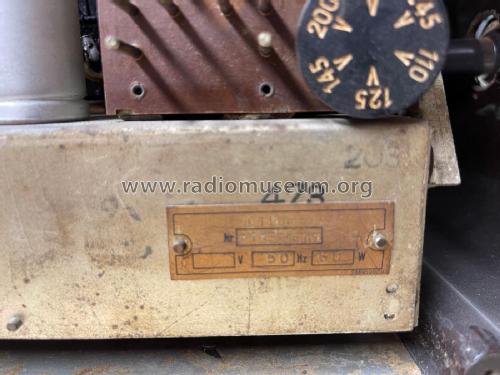

• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: H15A - NSF Nederlandsche

• Shape
• Tablemodel, low profile (big size).

• Price in first year of sale
• 128.00 Hfl

• Mentioned in
• Technisch- Commercieel - Radio Vademecum Staleman

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
