• Country
• Netherlands

• Manufacturer / Brand
• NSF Nederlandsche Seintoestellen Fabriek, Hilversum

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94664

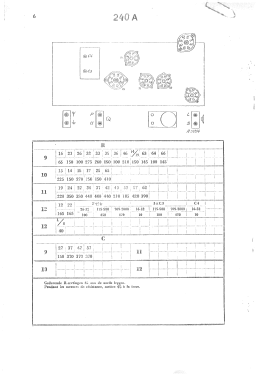

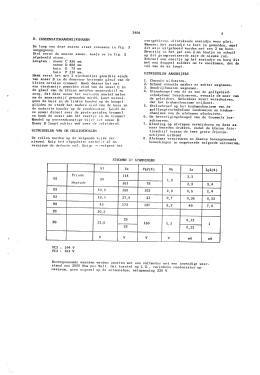

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH21 UAF42 UAF42 UL41 UM4 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Changer (Record changer)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 32 cm = 12.6 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: H240A - NSF Nederlandsche

• Shape
• Console: Chairside Radio.

• Dimensions (WHD)
• 530 x 950 x 420 mm / 20.9 x 37.4 x 16.5 inch

• Price in first year of sale
• 11,500.00 BFr

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.

• Other Models

• Here you find 165 models, 120 with images and 94 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
