- Country
- Netherlands
- Manufacturer / Brand
- NSF Nederlandsche Seintoestellen Fabriek, Hilversum
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 93386

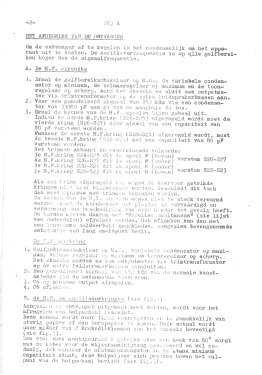

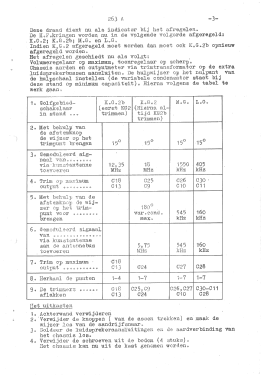

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: H263A - NSF Nederlandsche
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 445 x 305 x 210 mm / 17.5 x 12 x 8.3 inch
- Price in first year of sale
- 235.00 Hfl
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
- Other Models
-
Here you find 165 models, 120 with images and 94 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
