- Country
- Netherlands
- Manufacturer / Brand
- NSF Nederlandsche Seintoestellen Fabriek, Hilversum
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 84777
Quelle: Service Dokumentation
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

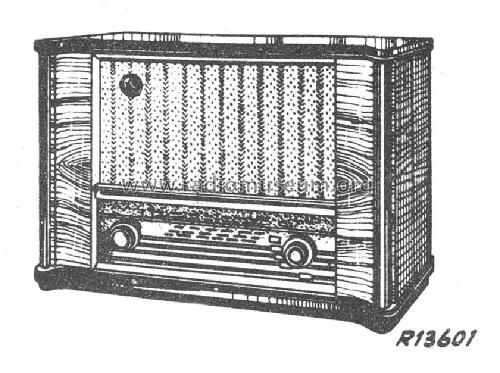

- Model: H348A-01 - NSF Nederlandsche
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 545 x 385 x 265 mm / 21.5 x 15.2 x 10.4 inch
- Notes
- Receives LW, MW, KW1,2,3 Can receive FM with special FM-unit 7768-12.
- Net weight (2.2 lb = 1 kg)
- 13.3 kg / 29 lb 4.7 oz (29.295 lb)
- Price in first year of sale
- 445.00 Hfl
- Mentioned in
- Technisch- Commercieel - Radio Vademecum Staleman
- Author
- Model page created by Jos Mulder. See "Data change" for further contributors.
