- Country
- Netherlands
- Manufacturer / Brand
- NSF Nederlandsche Seintoestellen Fabriek, Hilversum
- Year
- 1927
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 69754
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Storage and/or dry batteries / -12, -25, 4, 50, 120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

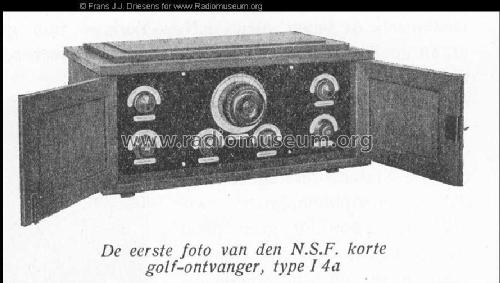

- Model: I.4.a - NSF Nederlandsche
- Shape
- Tablemodel, low profile (big size).
- Notes
- Information taken from Maker information. Picture Nr.: 004.30
- External source of data
- Radio Amateur Museum / Frans J.J. Driesens + ISBN 90-76014-04-3.
- Source of data
- Opkomst van de Nederlandse Radio-Industrie
- Literature/Schematics (1)
- Radio Historisch Tijdschrift, Nr. 120, 1. März 2007
