• Country
• Germany

• Manufacturer / Brand
• NSM Aktiengesellschaft; Bingen

• Year
• 1960 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 225130

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC83 ECC83 EL84 EL84 EL84 EL84 GZ34

• Main principle
• Audio-Amplification; 3 AF stage(s)

• Wave bands
• - without

• Details
• Jukebox-Coin operated Phonograph

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 24 W (30 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Fanfare - Juke Box F100ST - NSM Aktiengesellschaft; Bingen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 750 x 1300 x 620 mm / 29.5 x 51.2 x 24.4 inch

• Notes

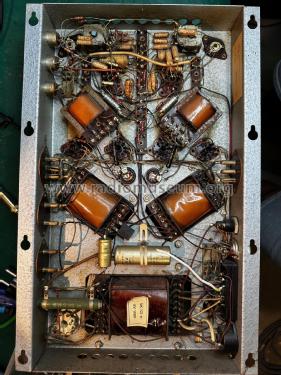

• Stereo-Verstärker: VK101ST - Tonsystem: Elac KST 103 - Tonnadel: Elac SM 103

  Lampen: 20W/24"/T12 - 13W/21"/T5

  Wähle: Soffitte 24V/7W mit Widerstand 70Ohm 4W oder E10 7V/300mA/2W ( zum Auffangen von Belastungsschwankungen )

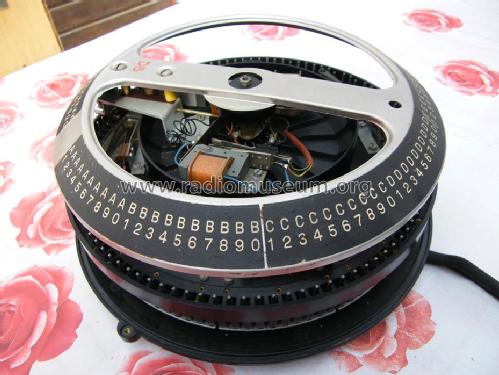

  Speicherwerk: Soffitte 24V/10W  -  Wechslermechanik: Blinklampe 24V/7W

• Author
• Model page created by Mario Darmann. See "Data change" for further contributors.
