• Country
• Italy

• Manufacturer / Brand
• Nuclear Radio Corporation (Prandoni); Treviglio

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345388

• Number of Tubes
• 5

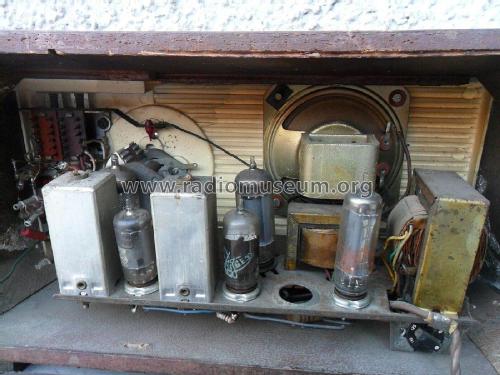

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Mec Series VCF-1428 - Nuclear Radio Corporation

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 305 x 150 x 100 mm / 12 x 5.9 x 3.9 inch

• Notes

• probabile elenco valvole 6AJ8 6BA6 6AT6 35D5 35X4

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.

• Other Models

• Here you find 68 models, 37 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
