• Country
• Italy

• Manufacturer / Brand
• Nuclear Radio Corporation (Prandoni); Treviglio

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 336189

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

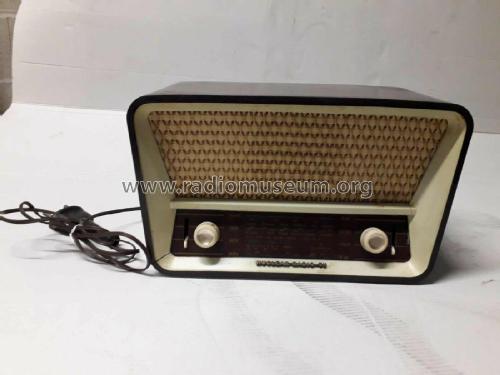

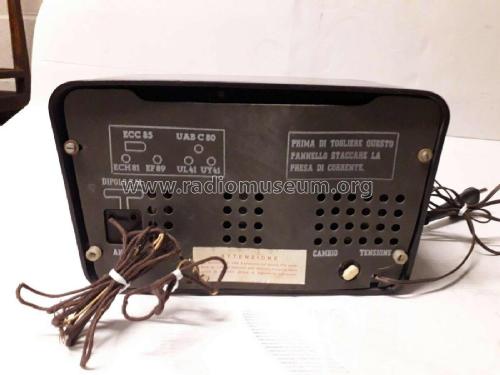

• Model: UCM-561 - Nuclear Radio Corporation

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 170 x 130 mm / 11 x 6.7 x 5.1 inch

• Notes

• Commercializzata anche con altri marchi elencati sotto VAR UCM-561.

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.

• Other Models

• Here you find 68 models, 37 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
