• Country
• Italy

• Manufacturer / Brand
• Nuova Elettronica; Bologna

• Year
• 1993

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345833

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• J310 BF966 BF241 BC239 SL6601 SA602 TBA820 µA78Lxx MC145106 BB405 ZPD6,8 1N4150 1N4007

• Main principle
• Special principle (see notes)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Dry Batteries / 12 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

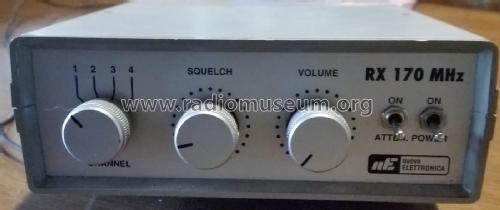

• Model: Ricevitore FM RX 170 MHz LX 1134 - Nuova Elettronica; Bologna

• Notes

• Questo ricevitore FM per la gamma 166-170 MHz a doppia conversione e sintonia a PLL con 4 canali fissi è stato progettato appositamente per ricevere i segnali del radiomicrofono LX1133 che trasmette su 4 canali:

  • canale 1 - 166,870 MHz
  • canale 2 - 168,510 MHz
  • canale 3 - 169,330 MHz
  • canale 4 - 170,150 MHz

  Impiega:  n. 1 filtro ceramico a 10,7 MHz: n. 1 quarzo a 10,240 MHz; 2 diodi varicap BB405; n. 2 diodi 1N4007. 1N4150; N. 1 zener 6,8v; n. 1 fet J310; n. 1 mosfet BF966/S; n. 2 transistor BF241, BC239B; n. 6 integrati NE602, SL6601, TBA820M, uA78L05, SP8793, MC145106.

• Price in first year of sale
• 135,000.00 Lire

• Literature/Schematics (1)
• -- Original-techn. papers. (rivista n. 166 Nuova Elettronica)

• Author
• Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
