• Country
• Germany

• Manufacturer / Brand
• Oceanic, (deutsche Marke)

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139170

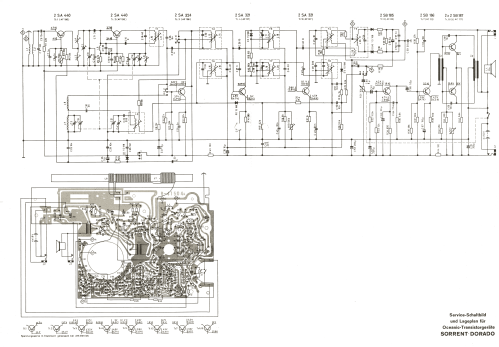

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA440 2SA440 2SA324 2SA321 2SA321 2SB185 2SB186 2SB187 2SB187

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 4x 1.5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

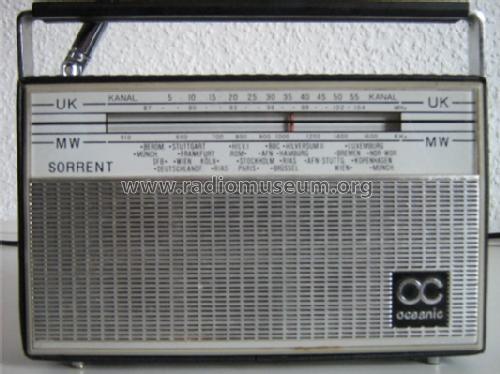

• Model: Sorrent - Oceanic, deutsche Marke

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 175 x 130 x 55 mm / 6.9 x 5.1 x 2.2 inch

• Notes

• Ferritstab, Teleskopantenne. Anschluss für Ohrhörer und externes Netzteil.
  Lautsprecher 8 Ohm. 6 Dioden.

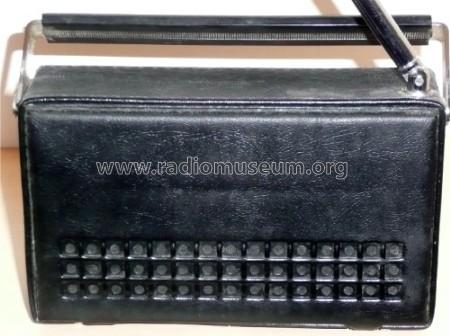

  Seiten, Rückwand wurden in den Farben schwarz oder grau geliefert .

  Siehe auch Oceanic Dorado mit gleichem Chassis, aber abweichendem Gehäuse.

  Bruttogewicht incl der Originalverpackung 0,740 kg

• Net weight (2.2 lb = 1 kg)
• 0.640 kg / 1 lb 6.6 oz (1.41 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Volker Potthast. See "Data change" for further contributors.
