• Country
• Germany

• Manufacturer / Brand
• Oelsner, Siegfried; Leipzig

• Year
• 1967–1969

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 82646

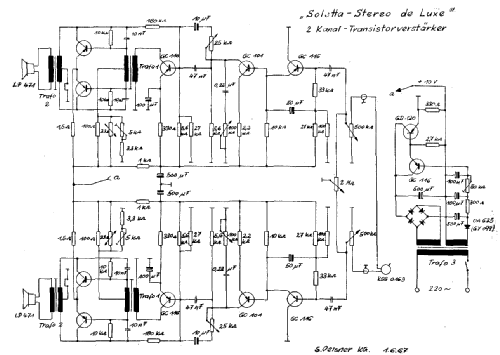

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 15 cm = 5.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Soletta Stereo de Luxe - Oelsner, Siegfried; Leipzig

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 440 x 190 x 320 mm / 17.3 x 7.5 x 12.6 inch

• Notes
• 2 Lautsprecherboxen á 2 Watt, 4 Ohm, als Deckel zusammenbaubar. Kristallsystem KS 22 oder KSS0163, 16/33/45 U/min. Gehäuse mit Kunstleder-Überzug oder Furnier.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 450.00 DM

• External source of data
• Originalgerät

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert (Funkverlag Hein, Service-DVD)

Reparaturanleitung / Service

486 KB

• Documents regarding this model

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
