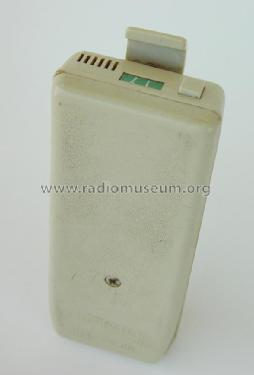

Receptor buscapersonas Pocket Bell (pager) R
OI Electric CO LTD.; Yokohama
- Country
- Japan
- Manufacturer / Brand
- OI Electric CO LTD.; Yokohama
- Year
- 1972 ?
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 314751
- Number of Transistors
- 15
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Dry Batteries / Mercury: 2,6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Receptor buscapersonas Pocket Bell R - OI Electric CO LTD.; Yokohama
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 45 x 110 x 21 mm / 1.8 x 4.3 x 0.8 inch
- Notes
-

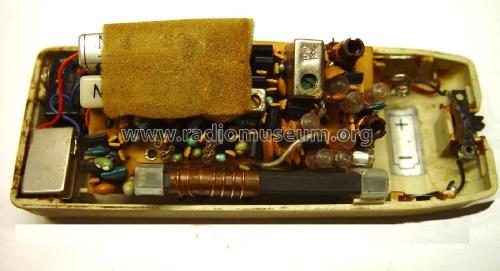

Buscapersonas de una frecuencia en banda de 27 MHz con sintonia por cristal de cuarzo.
selección de llamada mediante 2 filtros piezoelectricos.
llamada mediante pitido y mensaje de voz, audible en un pequeño altavoz extraplano.
las medidas no incluyen la pinza de soporte.
Alimentación por pila TR-132 (Mercury, Hg) o similar.
- Net weight (2.2 lb = 1 kg)
- 0.1 kg / 0 lb 3.5 oz (0.22 lb)
- Author
- Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
