14TT91 Ch= GT
Olympic Radio & Television, Inc.; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Olympic Radio & Television, Inc.; New York (NY)
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 317185

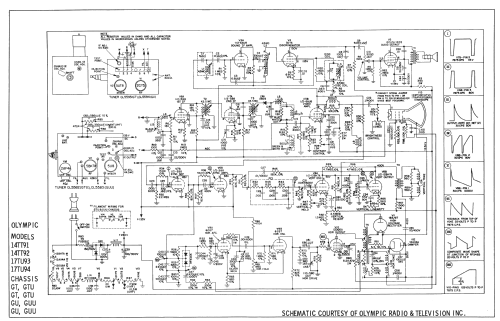

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 14TT91 Ch= GT - Olympic Radio & Television,
- Notes
-
Olympic model 14TT91 is a 14" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis GT, VHF tuner CL5593 and picture tube 14WP4.
- Literature/Schematics (1)

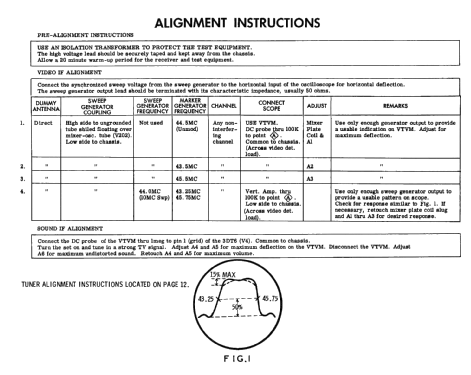

- Photofact Folder, Howard W. SAMS (Set 378 Folder 14-S dated 11-57)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 395 Folder 2 dated 4-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
