• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 282496

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6BC5 6AT8 6CB6 6CB6 6AW8 6BN6 6DG6GT or 6W6GT 12AU7 12BH7 6SN7GTB 6DQ6 or 6CU6 6AX4GT 1B3GT 5U4G 21AUP4 or 21AUP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycle 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1CB21 Ch= CB - Olympic Radio & Television,

• Shape
• Tablemodel, with any shape - general.

• Notes

• OLYMPIC model  1CB21 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner CL4307, chassis "CB" and picture tube 21AUP4 or 21AUP4A.

  .

• Literature/Schematics (1)

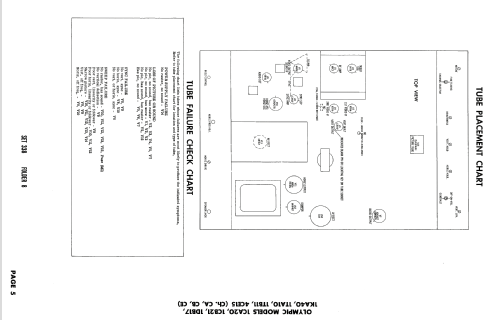

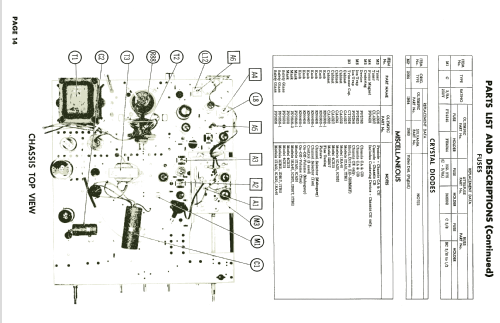

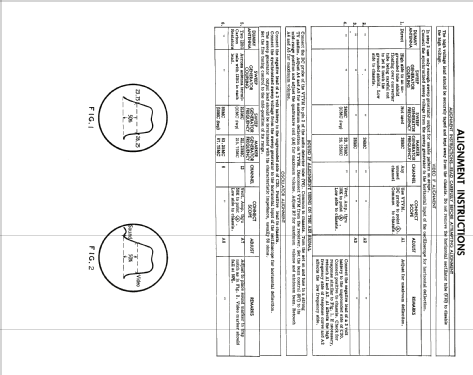

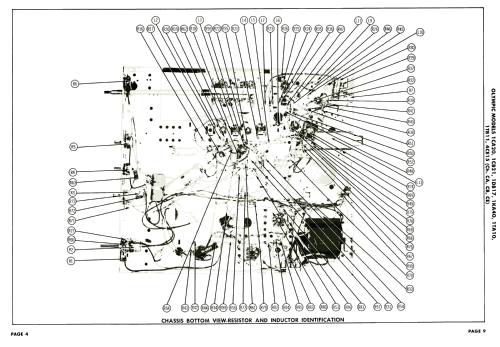

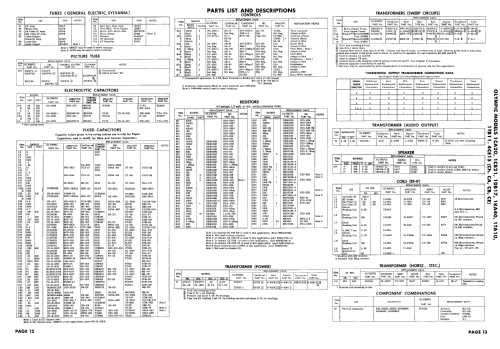

• Photofact Folder, Howard W. SAMS (Set 338 Folder 8 dated 11-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 322 Folder F16-S)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
