1CB77U Ch= DBU

• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 262079

• Picture

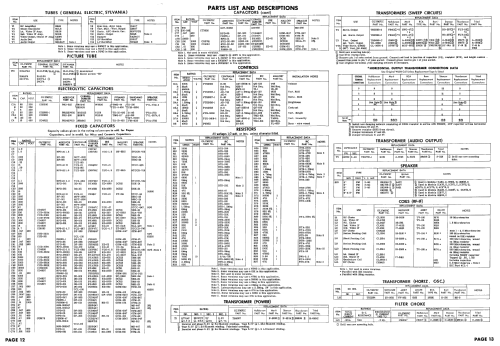

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6U8 6BK7 6AF4A 6AW8 6BN6 6DG6GT or 6W6GT 6BZ6 6CB6 12AU7 12BH7 6SN7GTA or 6SN7GTB 6CU6 or 6DQ6 1B3GT 6AX4GT 5U4G 21ALP4 or 21ALP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1CB77U Ch= DBU - Olympic Radio & Television,

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Olympic 1CB77U is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis DBU, VHF-UHF tuner CL5220-1 and picture tube 21ALP4 or 21ALP4A.



• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 350 Folder 18-S date 3-57)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 365 Folder 10 dated 7-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
