• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 284516

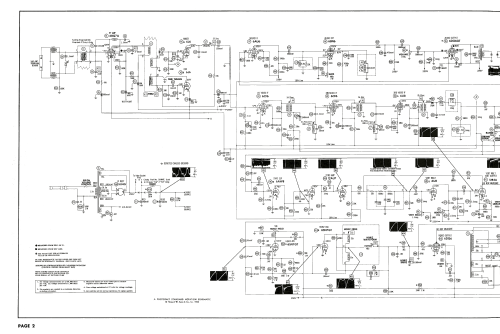

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6BQ7A 6J6 6CF6 6CF6 6U8 6AW8 6AU6 6BN6 6DG6GT or 6W6GT 12AU7 12B4A 6SN7GT 6DQ8 6AX4GT 1B3GT 5U4G 21ALP4B

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycle 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1CC23 Ch= CC - Olympic Radio & Television,

• Shape
• Tablemodel, with any shape - general.

• Notes

• The OLYMPIC model 1CC23 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13 . Equipped with Chassis "CC" and picture tube 21ALP4B.




• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 340 Folder 13 dated 12-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 323 Folder 13-S dated 1956)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
