1CD73 Ch= DD

• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 271681

• Picture

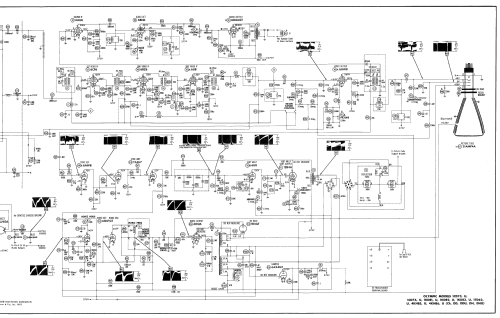

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6CL8 6BS8 6CF6 6BZ6 6U8 6AW8 6AU6 6BN6 6W6GT or 6DG6GT 12AU7 12B4A 6SN7GT 6DQ6 6AX4GT 1B3GT 5U4GA or 5U4G 21AMP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• from Radiomuseum.org
• Model: 1CD73 Ch= DD - Olympic Radio & Television,

• Notes

• The Olympic 1CD73 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis DD and picture tube 21AMP4A.

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 351, Folder 22-S, Dated 1957)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 362, Folder 4 Dated 6-57)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
