22DZ116 Ch= "Z"

• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1955 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 330949

• Picture
• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 26

• Valves / Tubes
• 6T4 6BZ7 6U8 6CB6 6CB6 6CB6 12BY7 6AU6 6AL5 6AV6 6W6GT 12AU7 12AU7 12BH7 6SN7GTB 6BQ6GTB or 6CU6 6AX4GT 1B3GT 5U4G 21ALP4A 12SA7 12SK7 12SQ7 12AV6 35L6GT 35L6GT

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22DZ116 Ch= "Z" - Olympic Radio & Television,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Olympic model 22DZ116 is a 21” b/w TV with US standard VHF tuner channels 2 thru
  13, and 14 thru 83 UHF. Equipped with chassis "Z" , VHF- UHF-tuner CL3496, AM radio-chassis and picture tube 21ALP4A.



• Literature/Schematics (1)

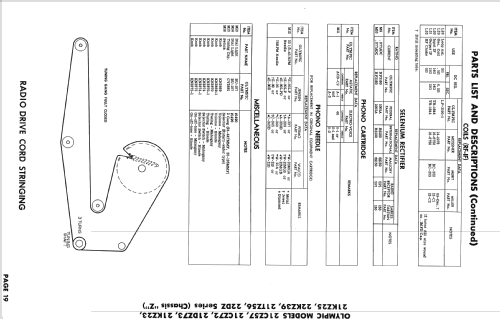

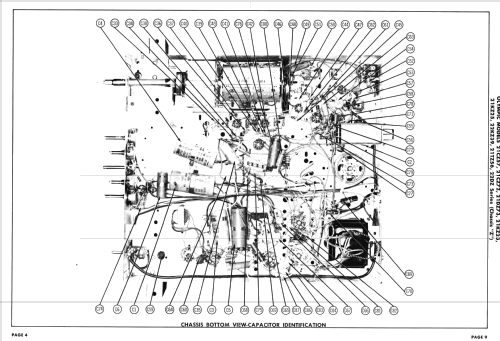

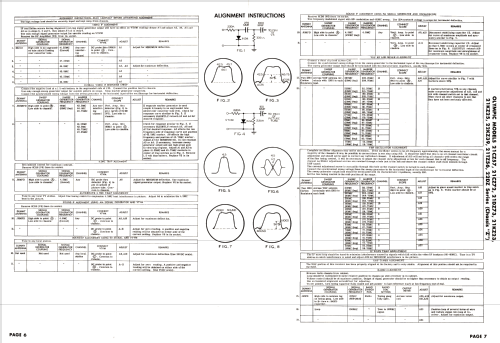

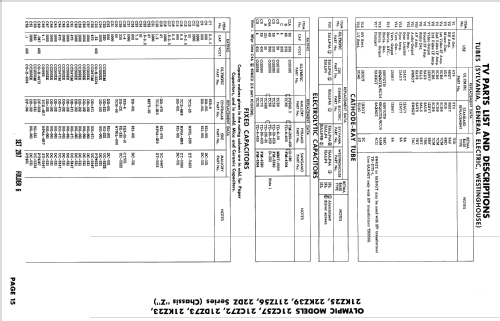

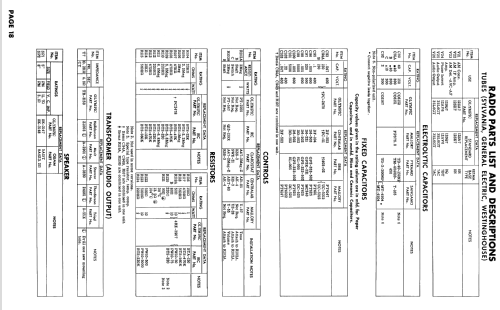

• Photofact Folder, Howard W. SAMS (Set 297 Folder 6 dated 11-55)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
