4CF76U Ch= DFU

• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 262083

• Picture
• Schematics

Previous Next

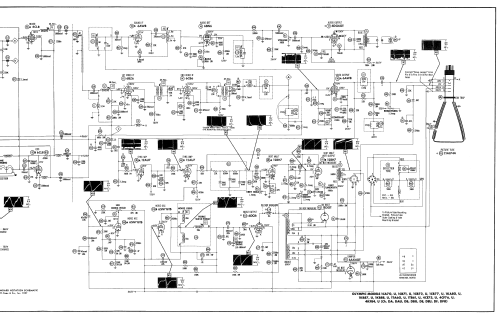

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6U8 6BK7 6AF4A 6AW8 6BN6 6DG6GT or 6W6GT 6BZ6 6CB6 12AU7 12BH7 6SN7GTA or 6SN7GTB 6CU6 or 6DQ6 1B3GT 6AX4GT 5U4G 24CP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 4CF76U Ch= DFU - Olympic Radio & Television,

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Olympic 4CF76U is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis DFU, VHF-UHF tuner CL5220-1 and picture tube 21ALP4 or 21ALP4A.
