Olympic-Opta Meteor 5781W

Loewe-(Opta); Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1958 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 141258
    • alternative name: Löwe Radio

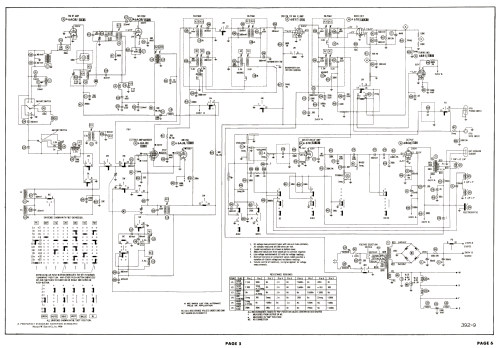

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz; Export model
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Olympic-Opta Meteor 5781W - Loewe-Opta; Deutschland
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 23.5 x 15.75 x 11.25 inch / 597 x 400 x 286 mm
  • Notes

  • The Olympic-Opta Meteor 5781W is an AC operated 6 tube FM-LW-BC-SW receiver.

  • Mentioned in
  • -- Original prospect or advert (Olympic-Opta folder)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
