Olympic-Opta Moderna 5783W
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 141257
-
- alternative name: Löwe Radio
Sams Photofact Folders

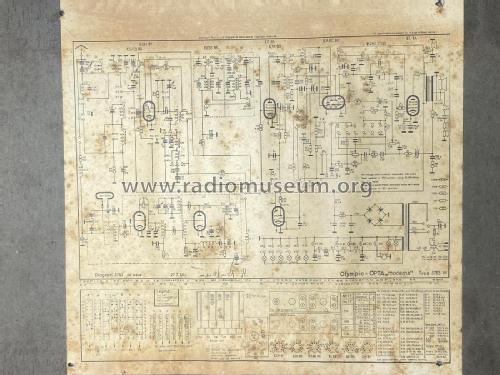

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; Export model
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Olympic-Opta Moderna 5783W - Loewe-Opta; Deutschland
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 24.5 x 15.5 x 11.5 inch / 622 x 394 x 292 mm
- Notes
-

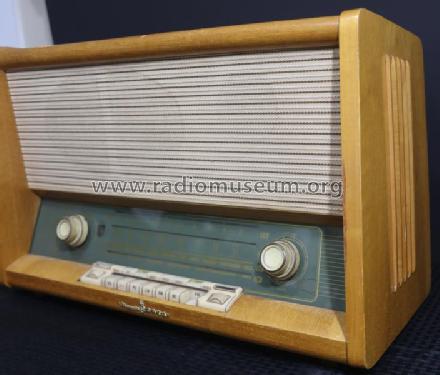

The Olympic-Opta Moderna 5783W is an AC operated 6 tube FM-LW-BC-SW receiver.
- Mentioned in
- -- Original prospect or advert (Olympic-Opta folder)
- Literature/Schematics (1)

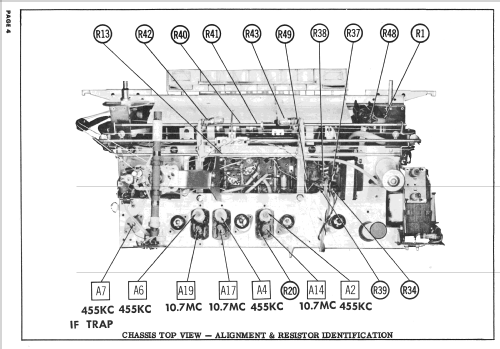

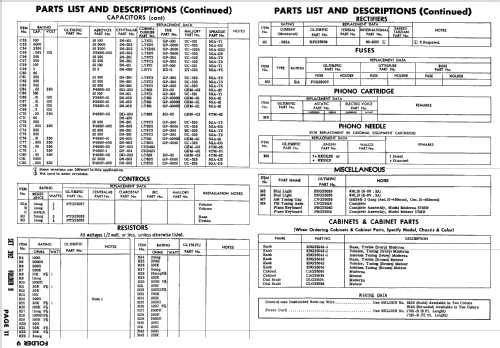

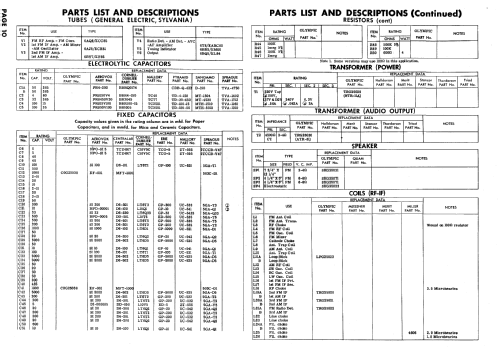

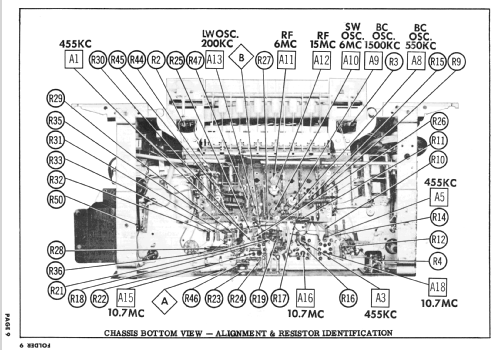

- Photofact Folder, Howard W. SAMS (Date 3-58, Set 392, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
