• Year
  • 1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 151453

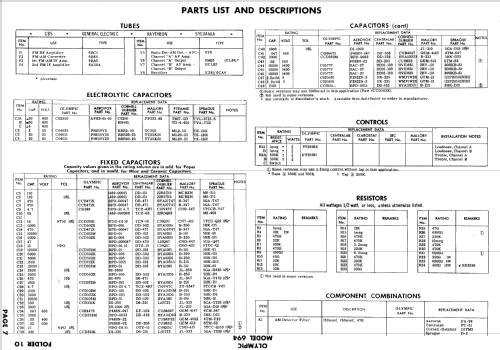

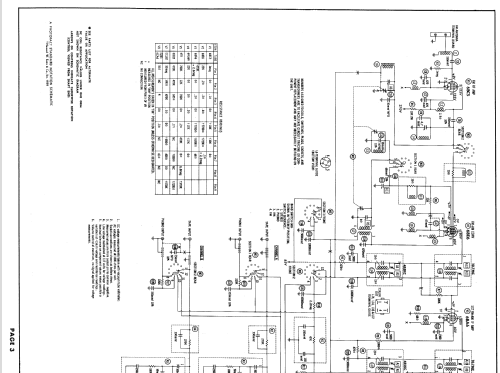

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 694 - Olympic Radio & Television,
  • Shape
  • Console with any shape - in general
  • Notes
  • The Olympic Model 694 is an AC operated 8 Tube FM-AM Receiver with Stereo Amplifier and 4 Speed Automatic Record Changer.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
