- Country
- United States of America (USA)
- Manufacturer / Brand
- Olympic Radio & Television, Inc.; New York (NY)
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239306
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455/21750 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
- Material
- Bakelite case
- from Radiomuseum.org

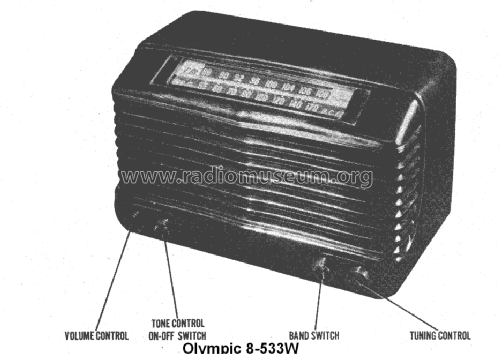

- Model: 8-533W - Olympic Radio & Television,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
AC-DC operated AM-FM Superheterodyne Receiver with Loop Antenna.
AM: 530-1700kc; FM: 88-108Mc
- Mentioned in
- Photofact Folder, Howard W. SAMS (495-14 Set 57 Folder 14)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
