- Country
- United States of America (USA)
- Manufacturer / Brand
- Olympic Radio & Television, Inc.; New York (NY)
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 284137
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

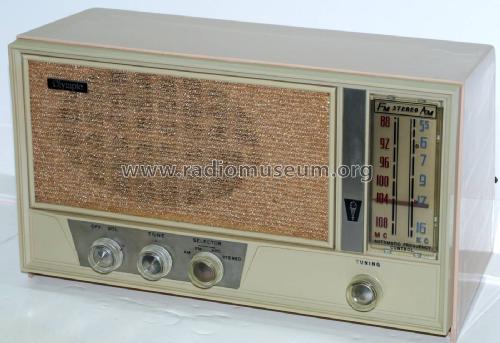

- Model: AFM-24 - Olympic Radio & Television,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12.5 x 7.25 x 6 inch / 318 x 184 x 152 mm
- Notes
-
Phono input, MPX output. Mains outlet for Stereo (MPX) converter only.
Made in Japan.
- Net weight (2.2 lb = 1 kg)
- 4 lb 12 oz (4.75 lb) / 2.157 kg
- Literature/Schematics (1)

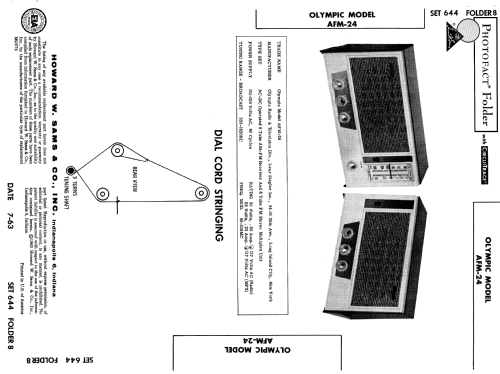

- Photofact Folder, Howard W. SAMS (Set 644 - Folder 8 - Date 7-1963)
- Author
- Model page created by David Erali. See "Data change" for further contributors.
