C21BD35 Ch= BD

• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 338837

• Picture
• Schematics

Previous Next

Previous Next

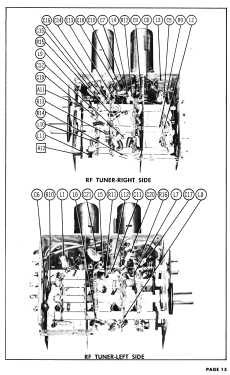

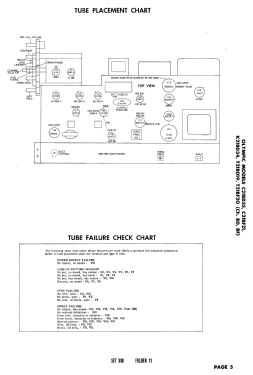

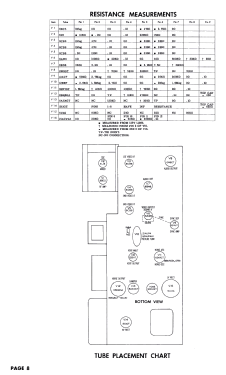

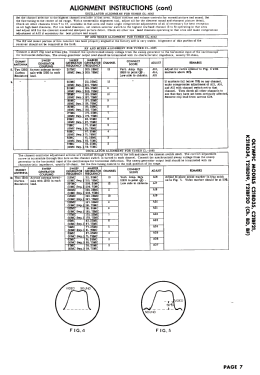

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BC5 6J6 6CB6 6CB6 6CB6 6AW8 6BN6 6W6GT 12AU7 12BH7 6SN7GT 6BQ6GA 6AX4GT 1B3GT 5U4G 21AUP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: C21BD35 Ch= BD - Olympic Radio & Television,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Olympic model C21BD35 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis BD, VHF tuner CL-4042 and picture tube 21AUP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 310 Folder 11 dated 3-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 594 models, 272 with images and 542 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Olympic Radio & Television, Inc.; New York (NY)
