• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1959 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 147867

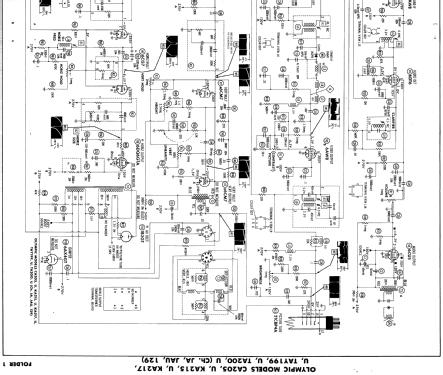

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6BE6 6BA6 6CY5 6CG8A 6DK6 6DK6 6AW8A 6DT6 6CU5 6AV6 6CM7 6CG7 6DQ6A 6AX4GT 1G3GT 5U4GB 21CBP4A

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: KA215U Ch= JAU Ch= 129 - Olympic Radio & Television,

• Notes
• Channel 2 thru 13 VHF, 14 thru 83 UHF. Sams photofact set 485 folder 1 date 5-60 features the Olympic models CA205, KA215, KA217, TA200, TAY199 with chassis JA, the models CA205U, KA215U, KA217U, TA200U, TAY199U with chassis JAU as the same schematic. The models KA215, KA215U, TAY199, TAY199U with AM tuner chassis 129 and 4 speed automatic record changer.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 485 folder 1 date 5-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
