• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1950

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 130960

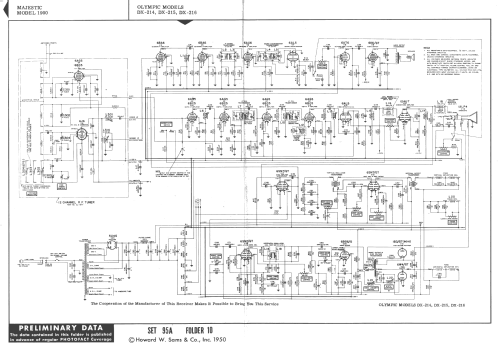

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6AG5 6J6 6BA6 6BA6 6AU6 6AL5 6AT6 6K6GT 6AG5 6AG5 6AG5 6AG5 6AL5 12AU7 12LP4 6SN7GT 6SN7GT 6SN7GT 6BG6G 1B3GT 6W4GT 5U4G

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: The Vanderbilt DX 215 - Olympic Radio & Television,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 25 x 38 x 22.5 inch / 635 x 965 x 572 mm

• Notes
• Olympic DX-215, "The Vanderbilt"; 12.5" round CRT b/w TV with US standard VHF tuner with "Super-DX" circuit, phono-in jack, built-in "Gyro-tenna", Honduras mahogany or blonde cabinet with half-size doors.

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Vol. 10/50 Set 95A Folder 10)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
