• Country
• Germany

• Manufacturer / Brand
• Omega; Trossingen, später Schwenningen a.N.

• Year
• 1962 ?

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 16045

• Main principle
• Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Detektor-Empfänger 8KM - Omega; Trossingen, später

• Dimensions (WHD)
• 78 x 95 x 45 mm / 3.1 x 3.7 x 1.8 inch

• Notes

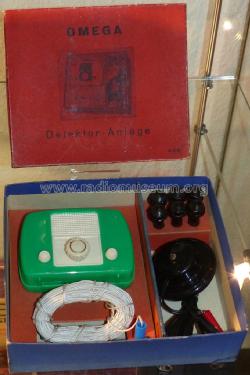

• "Bausatz" bestehend aus 8M, Einzelhörer 2000 Ohm, 1,4 m Kunststoffschnur mit 2 Bananensteckern, 12 m Zimmerantennenlitze mit Bananenstecker, 6 Zimmerisolatoren.

• Price in first year of sale
• 14.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkgeschichte der GFGF (9388)

• Literature/Schematics (1)
• Arlt Radio Elektronik Katalog 1963
