• Country
• Germany

• Manufacturer / Brand
• Omega; Trossingen, später Schwenningen a.N.

• Year
• 1954 ??

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 238756

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 ; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

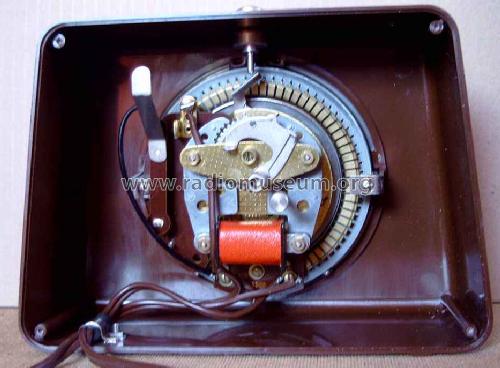

• Model: Electro-Boy Schaltuhr - Omega; Trossingen, später

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 185 x 145 x 73 mm / 7.3 x 5.7 x 2.9 inch

• Net weight (2.2 lb = 1 kg)
• 0.730 kg / 1 lb 9.7 oz (1.608 lb)

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
