Topolino
Omega Radio; Milano
- Country
- Italy
- Manufacturer / Brand
- Omega Radio; Milano
- Year
- 1945 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 321109

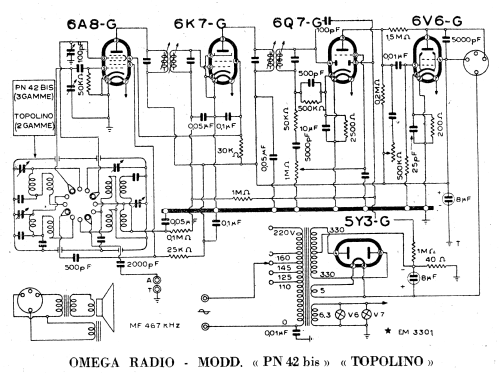

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Topolino - Omega Radio; Milano
- Notes
-
2 gamme d'onda. Usa lo stesso schema del modello PN 42 bis.
- Mentioned in
- -- Schematic (Il Manuale del Radiomeccanico G. B. Andeletti 1948/49)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
- Other Models
-
Here you find 9 models, 6 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Omega Radio; Milano
