• Country
• Poland

• Manufacturer / Brand
• OMIG; Warschau

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108232

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA102 2SA102 2SA102 TG-5 TG-5 TG-5

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.04 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

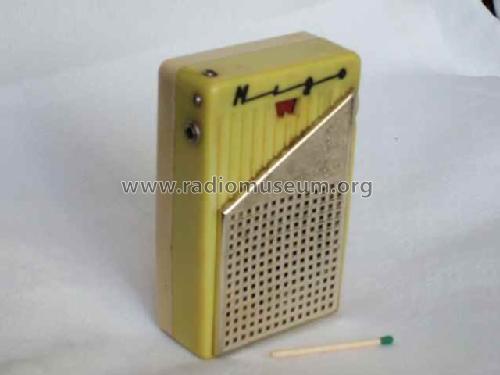

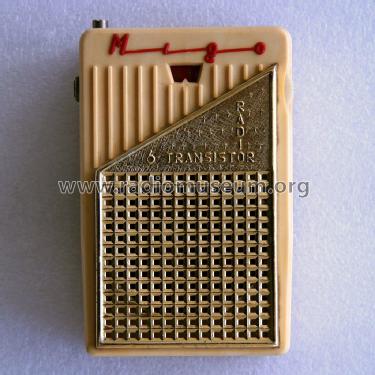

• Model: Migo OTS 1 - OMIG; Warschau

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 68 x 103 x 33 mm / 2.7 x 4.1 x 1.3 inch

• Notes
• .

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Price in first year of sale
• 1,100.00 zl

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• "Amatorskie odbiorniki tranzystorowe", S. Wolszczak, WNT 1966

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
