Stereo Cassette Tape Deck K-611

Onkyo, Osaka Denki Onkyo K.K.; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1993
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 275494

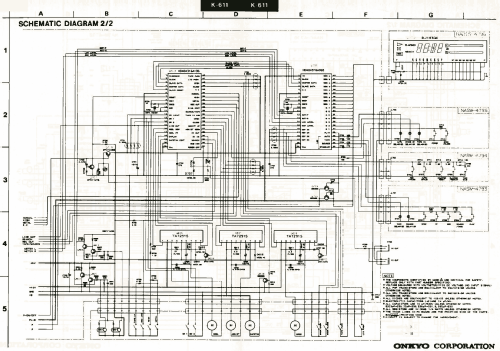

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Tape Deck K-611 - Onkyo, Osaka Denki Onkyo K.K.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 275 x 120 x 314 mm / 10.8 x 4.7 x 12.4 inch
  • Notes

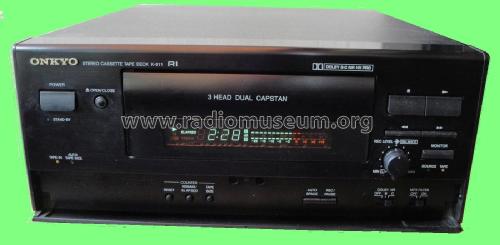

  • Onkyo Frontloading Stereo Cassette Tape Deck Model K-611.
    Type: 3-head, Dual Capstan, single compact cassette deck
    Track System: 4-track, 2-channel stereo
    Tape Speed: 4.8 cm/s, 1-7/8 i.p.s.
    Heads: 1 x combination record/playback, 1 x erase
    Motor: 1 x DC servo, 1 x DC
    Tape Type: type I, Cr02, Metal
    Noise Reduction: Dolby B, C, HX Pro
    Frequency Response: 20Hz to 19kHz (Metal tape)
    Signal to Noise Ratio: 80dB (dolby C)
    Wow and Flutter: 0.045% (WRMS), 0,09 (DIN)
    Input: 80mV (line) Output: 0.5V (line)

    Power Requirements:
    MP, MP v European Models - 230VAC, 50Hz
    MW - Worldwide Models - 120 and 220 VAC, switchable, 50/60Hz
    Power Consumption max. 14 Watts

    Finish:
    Black or Silver


  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Mentioned in
  • - - Manufacturers Literature (Service Manual Ref-No.: 3456)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
