• Country
• United States of America (USA)

• Manufacturer / Brand
• Operadio Corp.; St. Charles (IL)

• Year
• 1925

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 49890

• • alternative name: Operadio Mfg,

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Power type and voltage
• Dry Batteries

• from Radiomuseum.org

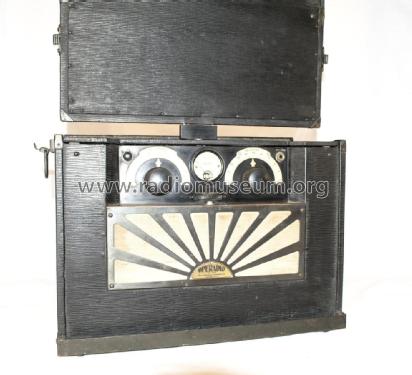

• Model: 1925 - Operadio Corp.; St. Charles IL

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Two dials (primary tuning control knobs)

  This radio was also exported to Australia in 1925-26.

• Price in first year of sale
• 189.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition
