0026-2
Opta Radio AG; Wüstenbrand
- Country
- Germany
- Manufacturer / Brand
- Opta Radio AG; Wüstenbrand
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 282574
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- Selenium-Rectifier
- Main principle
- TRF with regeneration
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org

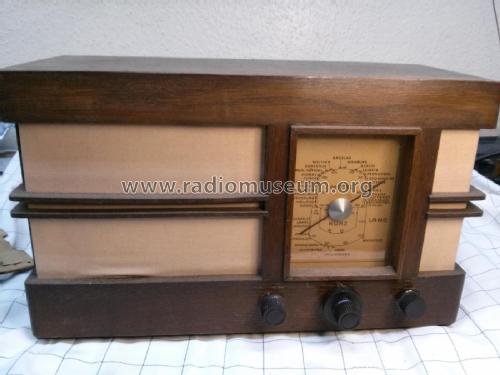

- Model: 0026-2 - Opta Radio AG; Wüstenbrand
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 470 x 270 x 200 mm / 18.5 x 10.6 x 7.9 inch
- Notes
-
Notradio, teilweise mit Material der Wehrmacht.
Als Lautsprecher ist der Typ LN3901 eingebaut.
Ein Sperrkreis ist im Gerät vorhanden.
- Author
- Model page created by Torsten Bauer. See "Data change" for further contributors.
