• Country
• Spain

• Manufacturer / Brand
• Optimus; Gerona

• Year
• 1956

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 98004

• • alternative name: Pla Hermanos y Cía

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF86 EF86 ECC83 EL84 EL84 GZ34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

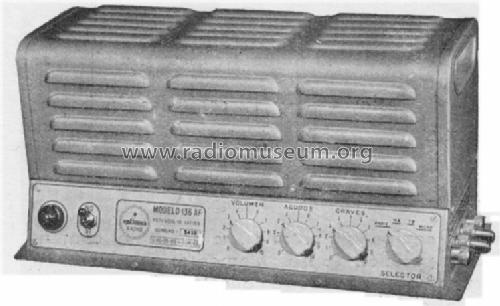

• Model: 136-AF - Optimus; Gerona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 190 x 200 mm / 15.7 x 7.5 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 4,572.00 ESP

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
