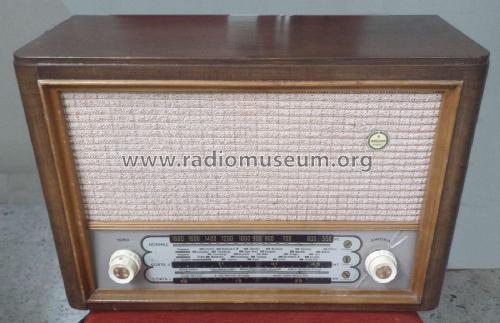

520 sin ojo mágico
Optimus; Gerona
- Country
- Spain
- Manufacturer / Brand
- Optimus; Gerona
- Year
- 1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 335323
-
- alternative name: Pla Hermanos y Cía
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- from Radiomuseum.org
- Model: 520 [sin ojo mágico] - Optimus; Gerona
- Dimensions (WHD)
- 450 x 310 x 200 mm / 17.7 x 12.2 x 7.9 inch
- Notes
-
Altavoz: Optimus modelo 465-C.C
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Author
- Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
