• Country
• Spain

• Manufacturer / Brand
• Optimus; Gerona

• Year
• 1972

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 212012

• • alternative name: Pla Hermanos y Cía

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• BC147 BC147 BC147 BC148 BC148 BC148 BC149 BC149 BC149 MC150 MC800 BD139 BD140 PC100 PC100 F12

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 15 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

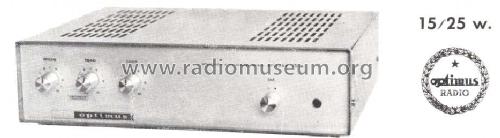

• Model: Arizona 1515 - Optimus; Gerona

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 310 x 85 x 245 mm / 12.2 x 3.3 x 9.6 inch

• Notes
• Amplificador Arizona.
  Entradas: fono, auxiliar, 3x micrófono (baja, media y alta impedancia)

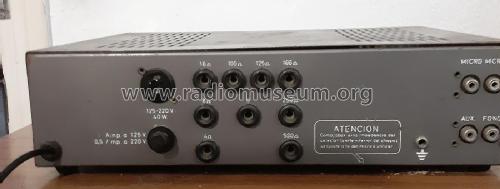

  Impedancias de salida: 4, 8, 16, 100, 125, 166, 250 y 500 Ohm.

  Diodos: 8x F12 (enumerado una sola vez).

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)
