Compacto 121
Optimus; Gerona
- Country
- Spain
- Manufacturer / Brand
- Optimus; Gerona
- Year
- 1934 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 151133
-
- alternative name: Pla Hermanos y Cía
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details

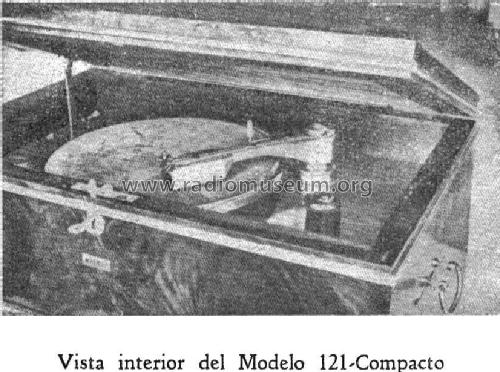

- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 15 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

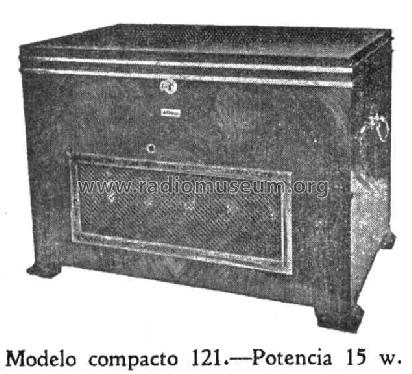

- Model: Compacto 121 - Optimus; Gerona
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Altavoz/Loudspeaker 495CC: Bobina/coil 2 ohms, campo/field 6000 ohms.
Probablemente el amplificador sea el modelo 121C.
- Literature/Schematics (1)
- Anuncio revista Radioelectricidad Enero 1944
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
