Galaxia 23"
Optimus; Gerona
- Country
- Spain
- Manufacturer / Brand
- Optimus; Gerona
- Year
- 1966/1967 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 319065
-
- alternative name: Pla Hermanos y Cía

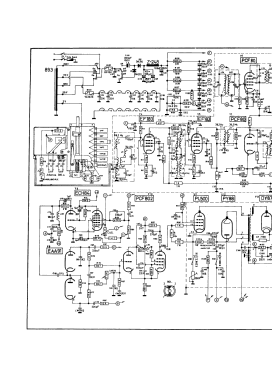

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- EF183 EF183 EF184 EF80 PCF80 PCL84 PCL86 ECH84 EAA91 PCF802 PCL85 PL500 PY88 DY87 A59-11W
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: Galaxia 23" - Optimus; Gerona
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Óptimus (Pla Hermanos y Cía.), Tharsis
TV B/N 23"
Selector canales transistorizado con 6 presintonías por pulsadores.
Cuatro presintonías para VHF y dos para UHF.Véase Tharsis, mismo modelo en 25"
- Mentioned in
- Esquemario TV REDE, Tomo III, 1967
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Jose Cal Garcia. See "Data change" for further contributors.
