Ontario Public Address Amplifier 1358
Optimus; Gerona
- Country
- Spain
- Manufacturer / Brand
- Optimus; Gerona
- Year
- 1968
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 211750
-
- alternative name: Pla Hermanos y Cía
Datos del prospecto de publicidad

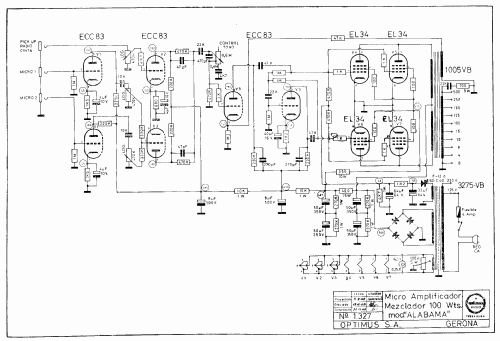

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 125-220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 60 W (75 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Ontario Public Address Amplifier 1358 - Optimus; Gerona
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 17.6 x 6.28 x 7.86 inch / 447 x 160 x 200 mm
- Notes
- Public Address "Optimus" Amplifier, Model "Ontario" 60/75 W con 3 canales.
Impedancias de salida: 4, 8, 10, 16, 100, 125, 166, 250, 500 Ohms.
Entradas: 2 de alta impedancia para microfono, 1 para pick-up/radio/tape.
Consumo de energía: 180 W.
- Net weight (2.2 lb = 1 kg)
- 29 lb 13 oz (29.812 lb) / 13.535 kg
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
