• Country
• Spain

• Manufacturer / Brand
• Optimus; Gerona

• Year
• 1973

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 211834

• • alternative name: Pla Hermanos y Cía

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors
• SC148 SC148 SC148 SC148 SC148 SC148 SC148 SC148 SC148 SC148 SC149 SC149 SC149 SC149 SC149 SC149 SC149 SC149 SC149 MC140 BD137 BD137 2N3055 BDX60 or. 2N6254 BDX60 or. 2N6254 BY126 BY126 BY126 BY126 BY126 BY126 BY126 BY126 BY126 BY126 BZY88

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (100 W max.)

• Material
• Metal case

• from Radiomuseum.org

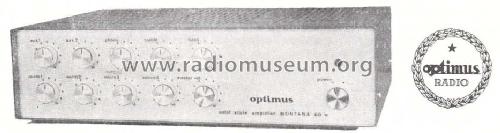

• Model: Orator 1592 - Optimus; Gerona

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 350 x 100 x 270 mm / 13.8 x 3.9 x 10.6 inch

• Notes
• Entradas: 4 para Microfono, 1 para Fono y 2 Auxiliares.
  Impedancias de salida: 4 8 16 100 125 166 250 50 ohms.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
