Programmable Preamplifier PM-603
Optimus; Gerona
- Country
- Spain
- Manufacturer / Brand
- Optimus; Gerona
- Year
- 1990–1997
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 171035
-
- alternative name: Pla Hermanos y Cía
- Number of Transistors
- 61
- Semiconductors
- unknown_tr CD4066 NE5534
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 220 / DC 24 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

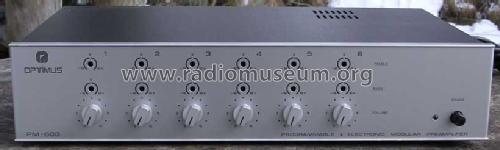

- Model: Programmable Preamplifier PM-603 - Optimus; Gerona
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 95 x 265 mm / 16.9 x 3.7 x 10.4 inch
- Notes
- Optimus Programmable & Electronic Modular Preamplifier PM-603;
Combination of a routing matrix and preamplifier.
6 inputs and 6 outputs, each channel can be programmed/routed to each output.
Each channel has volume level, treble and bass controls.
Inputs switchable to AUX H (0 dBV), AUX L (-20 dBV) or MIC (-62 dBV) level.
High impedance (100 kΩ) or low impedance (2 kΩ).
Symmetrical (with transformers) or asymmetrical connections.
Can be powered from AC mains or external DC 24 volts source.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Karl Reiter. See "Data change" for further contributors.
