Sideral Amplificador 40 Watt
Optimus; Gerona
- Country
- Spain
- Manufacturer / Brand
- Optimus; Gerona
- Year
- 1970 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 331907
-
- alternative name: Pla Hermanos y Cía
Optimus brochure
- Number of Tubes
- 0
- Number of Transistors
- 12
- Semiconductors
- OC71 OC71 OC71 AC126 AC126 AC126 AC126 AC128 ASZ15 or. ASZ17 ASZ15 ASZ15 BYY20 BYY20 BYY20 BYY20
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / AC 125-220 / DC 24 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 40 W (60 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sideral Amplificador 40 Watt - Optimus; Gerona
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 455 x 165 x 255 mm / 17.9 x 6.5 x 10 inch
- Notes
-
Frequency response: -3 dB from 70 ... 8000 Hz

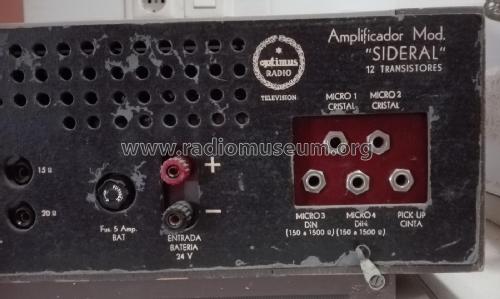

Inputs: 2 dynamic mics, 2 ceramit mic, 1 pick-up/radio/tape
Output impedances: 5, 6.7, 10, 15, 20 ΩCan operate on 12 V accu, with power output reduced to about 25 W.
- Net weight (2.2 lb = 1 kg)
- 10.3 kg / 22 lb 11 oz (22.687 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Jose Antonio Gonzalez-Ruiz. See "Data change" for further contributors.
