• Country
• Spain

• Manufacturer / Brand
• Optimus; Gerona

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 125329

• • alternative name: Pla Hermanos y Cía

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 125-220 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

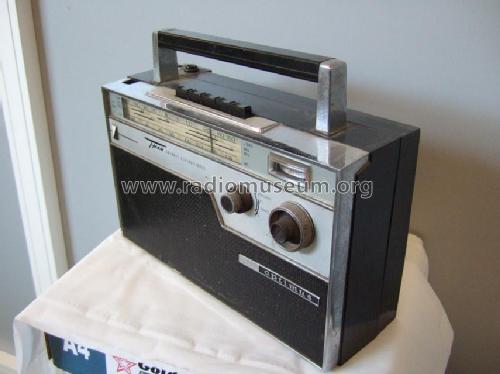

• Model: Transis FM 9 - Optimus; Gerona

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 170 x 90 mm / 11 x 6.7 x 3.5 inch

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
