• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83256

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

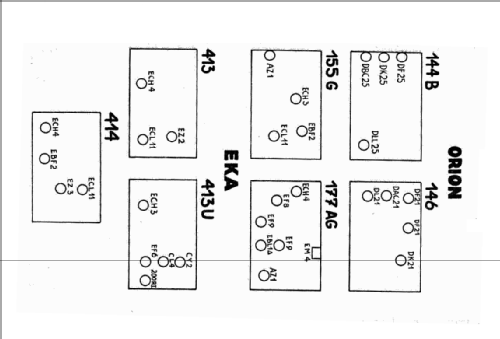

• DK25_Miniloktal DF25_Miniloktal DBC25_Miniloktal DLL25_Miniloktal

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 1,5 & 9 & 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

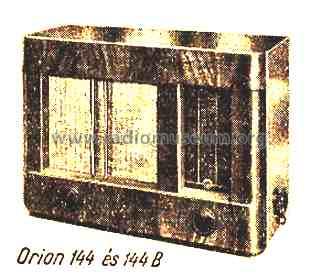

• Model: 144B - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 460 x 320 x 215 mm / 18.1 x 12.6 x 8.5 inch

• Notes

• Nur dieses Modell 144B und das Modell 133B haben diese speziellen Röhren mit 15 mm Stiftkreisdurchmesser. Orion Modell 144B hat eine Gegentaktendstufe.

• Price in first year of sale
• 313.00 pengö

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
