• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17949

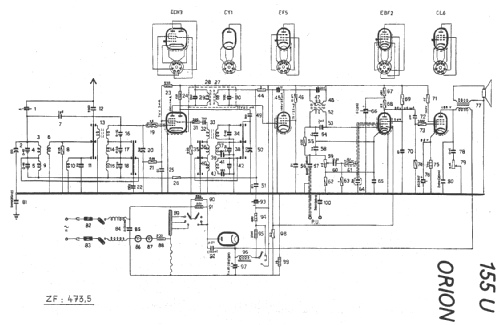

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF5 EBF2 CL6 CY1

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

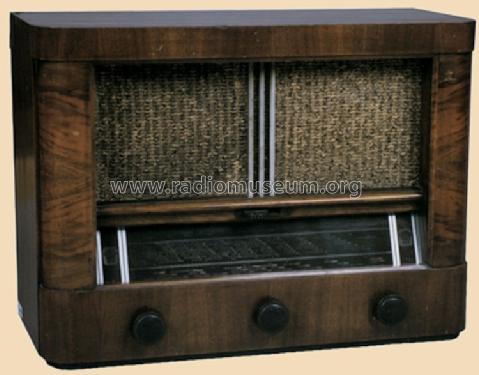

• Model: 155U - Orion; Budapest

• Shape
• Tablemodel, with any shape - general.

• Price in first year of sale
• 356.00 Pengő

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Mentioned in
• Rádió Compass 1940-41.
